From newborns to adults, comprehensive ECLS solutions for every heartbeat and breath
Based on advanced, cutting-edge technology, the ECLS Suite offers unmatched solutions providing extended cardiac and respiratory support to patients.
Experience a platform addressing all your clinical challenges, inside and outside of the hospital, and empowering clinicians to work together and ensure the right support therapy for each patient.
Non invasive sensoring system for optimal Patient monitoring
Optimized circuits for either ECMO or MCS
Magnetic levitating pump technology for minimized hemolysis1
PC (Phosphorylcholine) Coated circuit for reduced platelets consumption2
Up to 30 days disposable validation for long term procedures
Integrated back up system for extra safety in case of need
GOLD STANDARD FEATURES
UNLIMITED ECLS FEATURES
Validated for intra and extrahospital use, both through road ambulance and helicopter
Series of accessories to allow an easier transport and set-up
External auxilliary batteries for extended operational use
UNIQUE ADVANCED TECHNOLOGIES
Wi-Fi connection for remote monitoring, including wi-fi probes for venous and arterial parameters
Automatic priming function to save time during emergency situations
Seamless integration with ECMOLife
Possibility to adjust RPM from 0 to 4500 (500/click) and visualize flow through a dedicated flowmeter
Internal battery with 200 min of autonomy and possibility to connect also an external auxiliary battery
Possibility to attach not only the pump but also the Oxy and related tubing sets

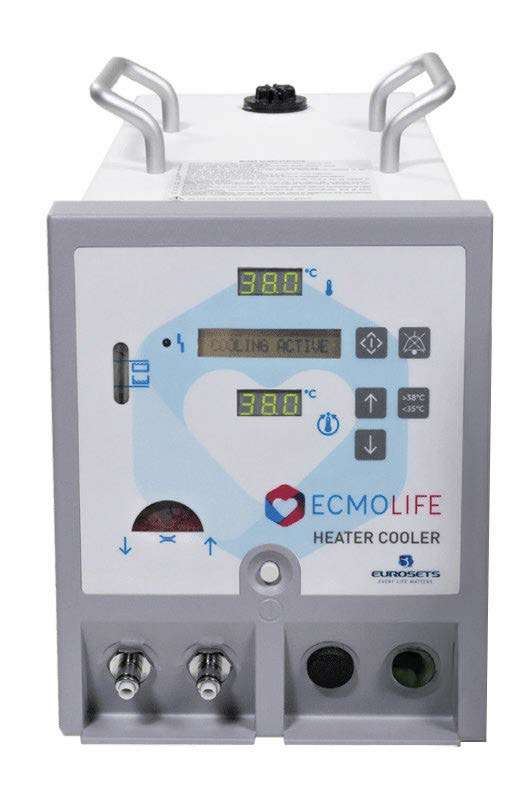

ALLOWS THE COMPLETE MANAGEMENT OF THE PATIENT’S BLOOD TEMPERATURE
Perform both functions: cooling & warming
Wide operational range 15°C- 39°C
Perfect synergy with Eurosets ECMO Oxy
SIMPLE AND STRAIGHT FORWARD DESIGN FOR EASE OF USE
Easy to setup & use in few simple steps
Universal Hansen connection tube to be used with any ECMO Oxygenator
REALIABLE MEASUREMENT DURING LONG TERM USE
Eurosets includes in its portfolio a dedicated gas mixing device which provides precise mixing of medical grade air and oxygen and displays this measured concentration on a digital display.
Easy-to-Use Smart Alarms
Backlit LCD

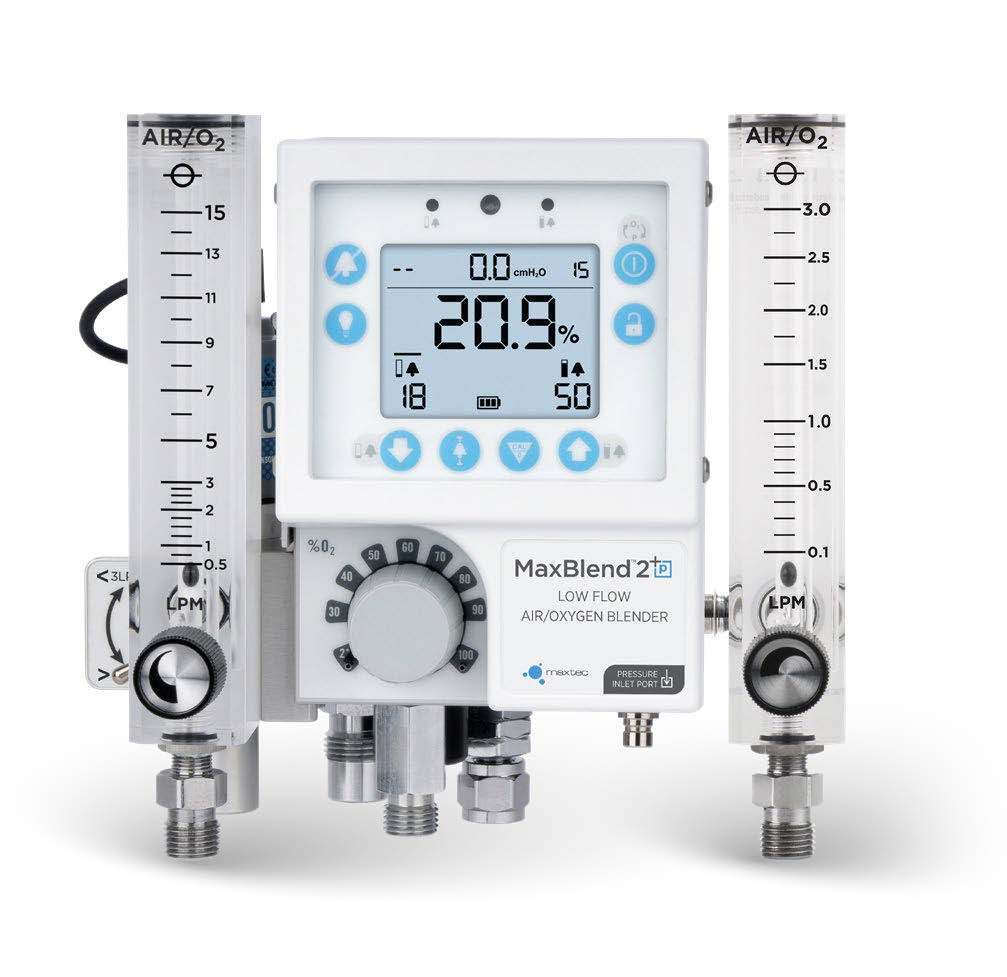

The MaxBlend 2 helps clinicians who want to prioritize patient safety and streamline patient care when delivering oxygen to patients by integrating a FiO2 monitor, airoxygen blender, and flowmeter into a single device.
The monitor provides high and low alarm limits which, when exceeded, cause an audible and visual alarm.
THE GAS BLENDER IS INTENDED TO PROVIDE A CONTINUOUS AIR/OXYGEN GAS MIXTURE AND TO CONTINUOUSLY MONITOR THE CONCENTRATION OF O2 DELIVERED.
All our circuits are phosphorilcoline coated.
Phosphorylcoline is the predominant lipid headgroup found within the outer layer of cell membranes.
Phosphorylcoline has a natural affinity for water and binds water tightly around itself.
Reduces platelet consumption remarkably (1)
Is suitable for patients with acute HIT (Heparine Induced Thrombocytopenia) (2)

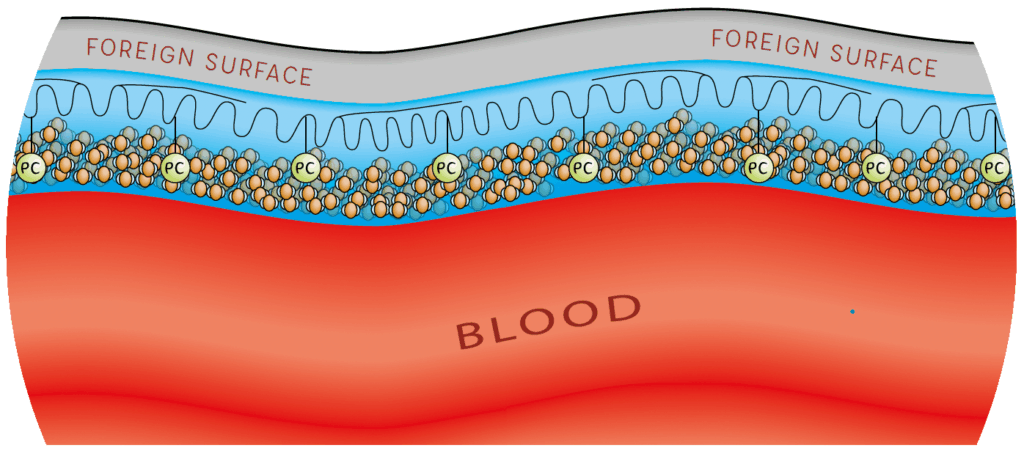

Alkaline chains spread across the surface yielding a stable coating through hydrophobic interactions
Layer of hydration around pc with a coated substrate the blood therefore “sees” a layer of water
Zwitterionic pc groups expressed outwards from the surface

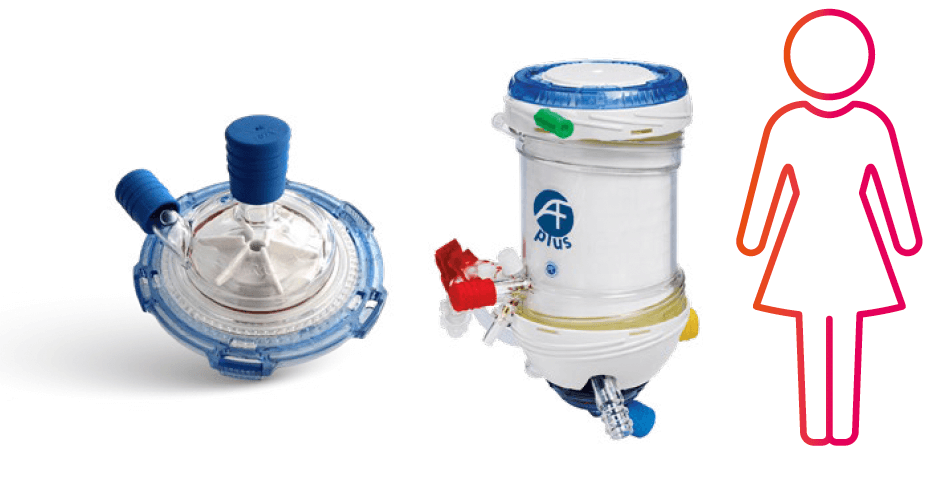

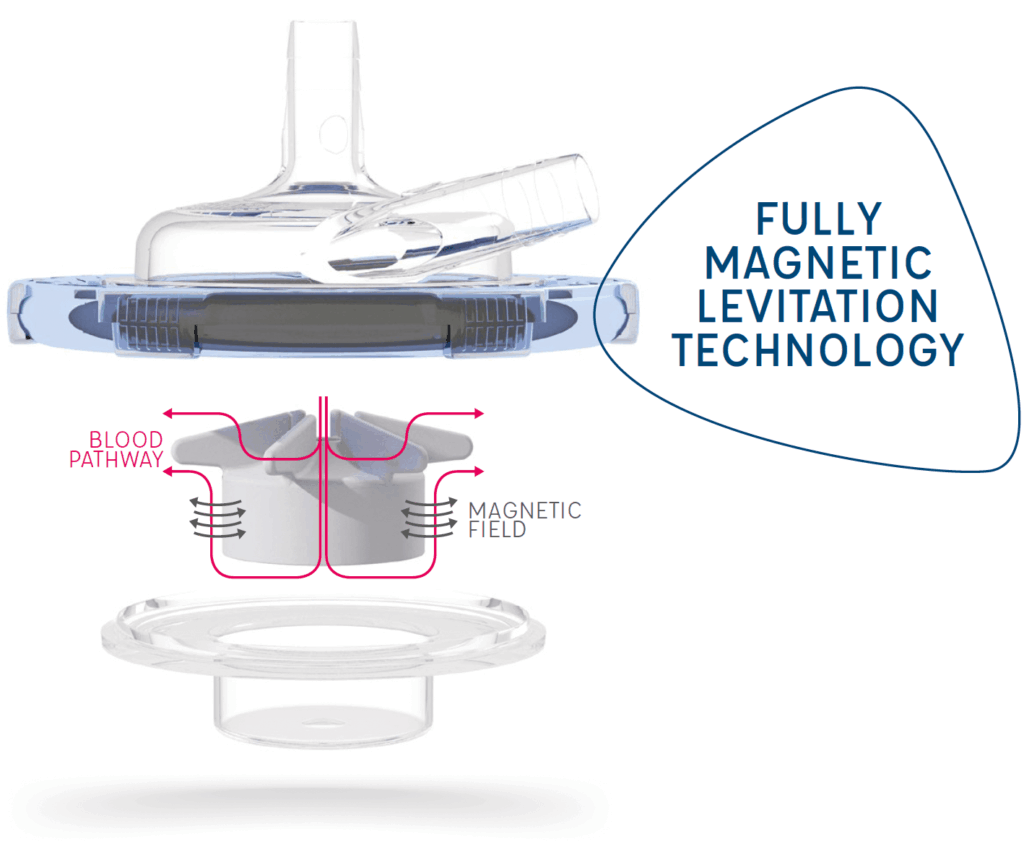

The pump is available both in Adult/Paediatric and Newborn configurations and is characterized by an impeller’s contact-free environment that ensures:
Optimal flow dynamics
Minimal friction and shear stress
Minimized hemolysis
Reduced blood stagnation areas

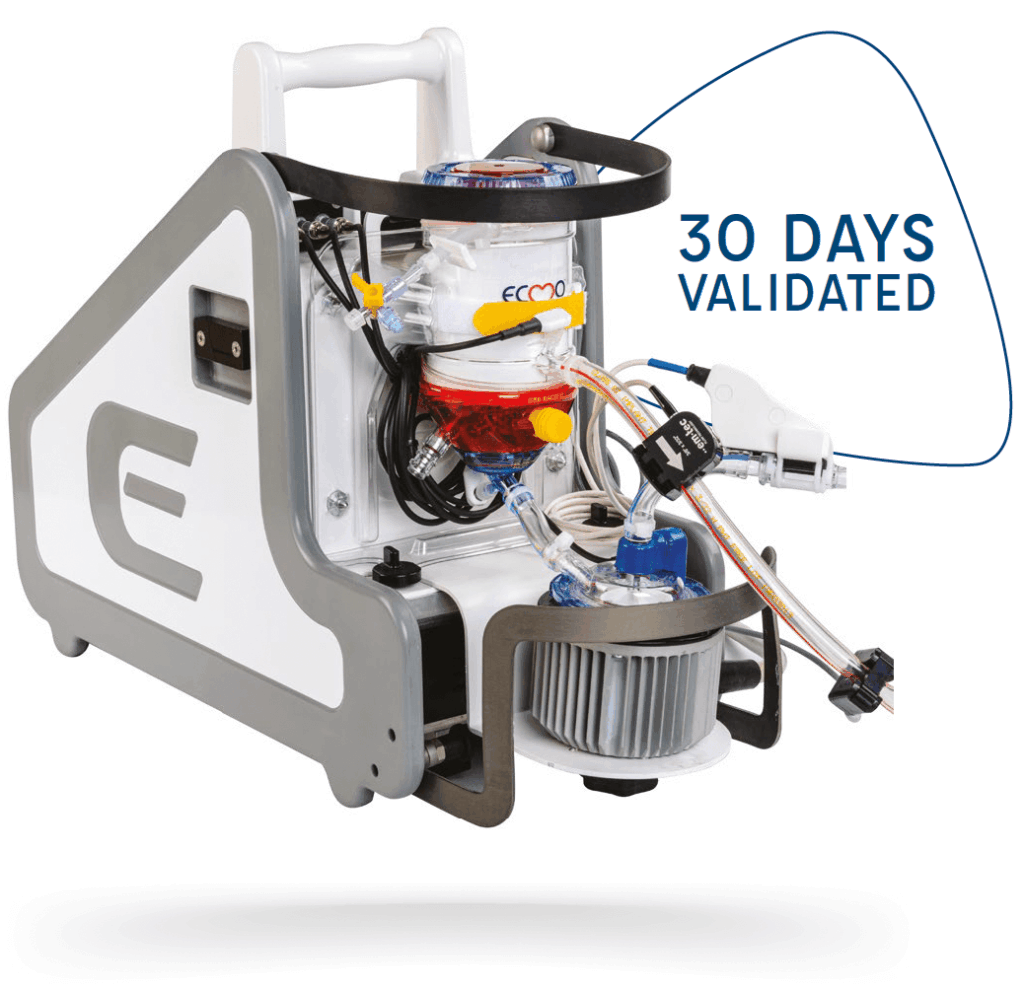

The circuits for ECMO come completely pre-connected and assembled in a kit.
OXY AND PUMP ARE LOCATED ON A DEDICATED BRACKET ENSURING:
Easy and quick disposable set up
Minimized encumbrance
Clear view of circuits integrity

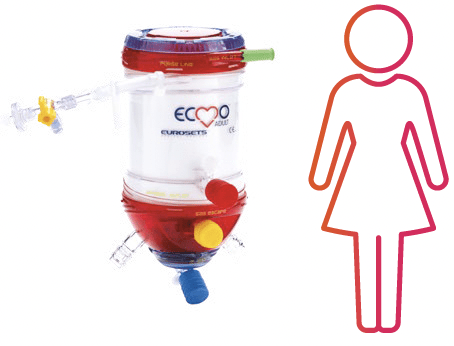

ADULT Up to 7 LPM

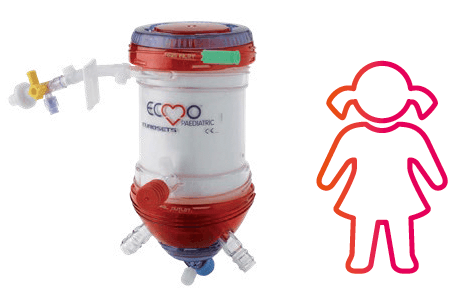

PAEDIATRIC Up to 4 LPM
NEWBORN Up to 1,5 LPM

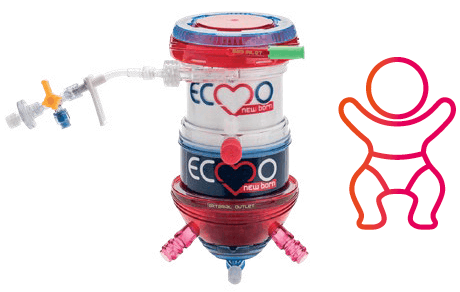

Newborn oxy
Newborn pump
1/4‘’ Circuit
3 Pressures measured with a single cable
A dedicated circuit that, in combination with ECMOlife, supports cardiac function (Left and Right Ventricular unloading) in patients suffering from severe heart failure
Our Ventricular Assist Support (VAS) circuits help support heart function and blood flow in people with weakened or failing hearts.

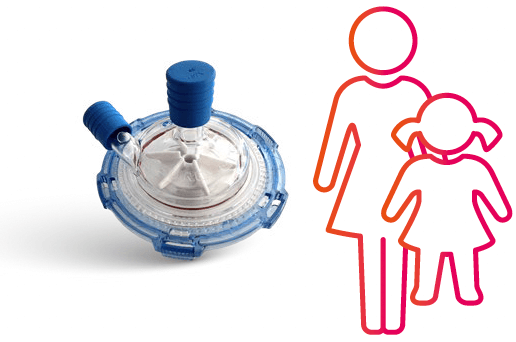

ADULT/PAED Up to 10 LPM
Adult/paed pump
3/8’’ Circuit
2 Pressures measurements

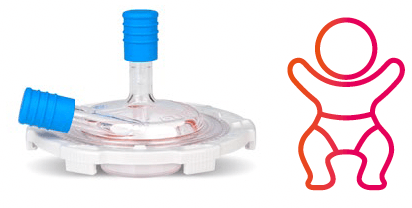

NEWBORN Up to 3 LPM
Newborn pump
1/4‘’ Circuit
2 Pressures measurement
Extracorporeal Cardiopulmonary Resuscitation (ECPR) is an advanced resuscitation technique used in cases of cardiac arrest, particularly when conventional CPR is ineffective.
ECPR is typically indicated for patients with refractory cardiac arrest and can significantly improve survival rates and neurological outcomes compared to conventional CPR.
Normothermic Regional Perfusion (NRP) is a medical technique primarily used in organ donation after circulatory death (DCD) to preserve and assess organs before transplantation.
NRP significantly reduces ischemic injury, preserves organ functionality, and improves transplant outcomes. It has been shown to increase the number of viable organs retrieved from DCD donors.
Catheterization Laboratory (Cath-Lab) Common Procedures in a Cath-Lab where ECLS can be used are:
ADULT Up to 7 LPM

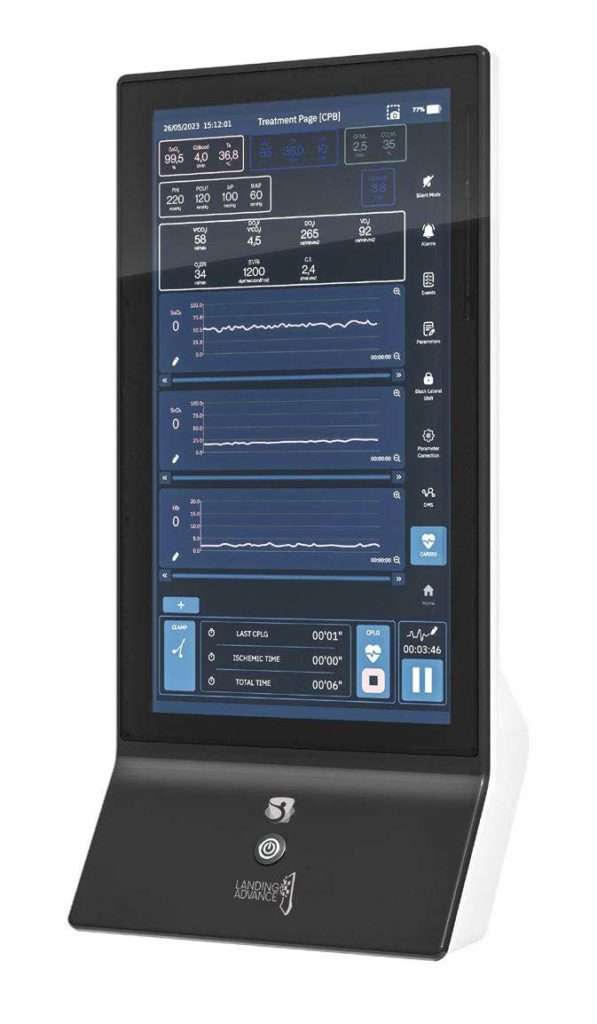

COMPLETE
Only one monitor for CPB and ECMO procedures
Tailored perfusion to optimize the ECC during cardiac surgery
Effective ECMO monitoring for optimal procedure control
VERSATILE
Suitable to any HLM
Suitable to any ECMO machine
Suitable to any PTS either in CPB and ECMO setting
INTUITIVE
Tailored parameters based on user’s profile for any customer needs
Large graphic interface for easier procedure management
Integrated DMS for a simple case data management

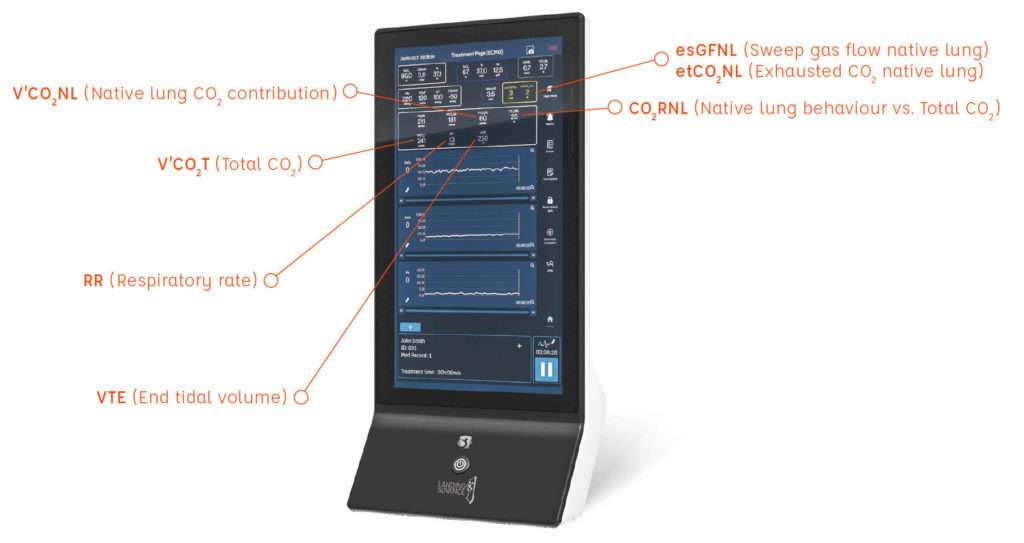

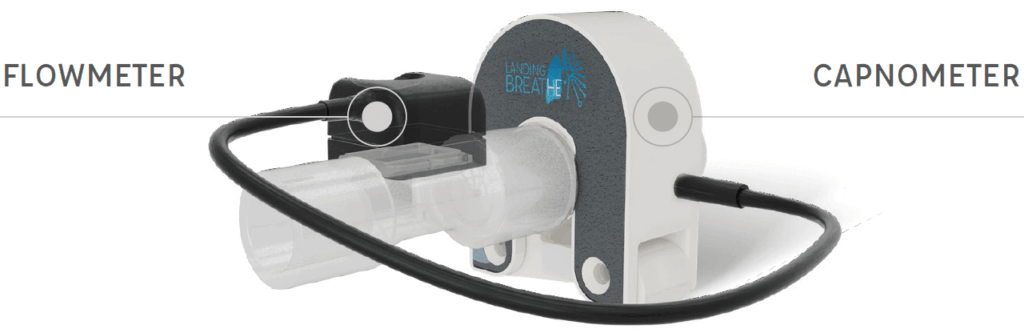

In pulmonary ECMO procedures, the O2 transfer and CO2 removal depend on a complex interaction between the Membrane Lung (ML), the Native Lung (NL) and the metabolic-hemodynamic pattern of the patient.
Monitoring the Membrane Lung is essential to understand the level of performance of gas exchange; while the Native Lung function in both gas exchange and mechanical properties must be assessed to understand the possibility and timing of VV-ECMO weaning.

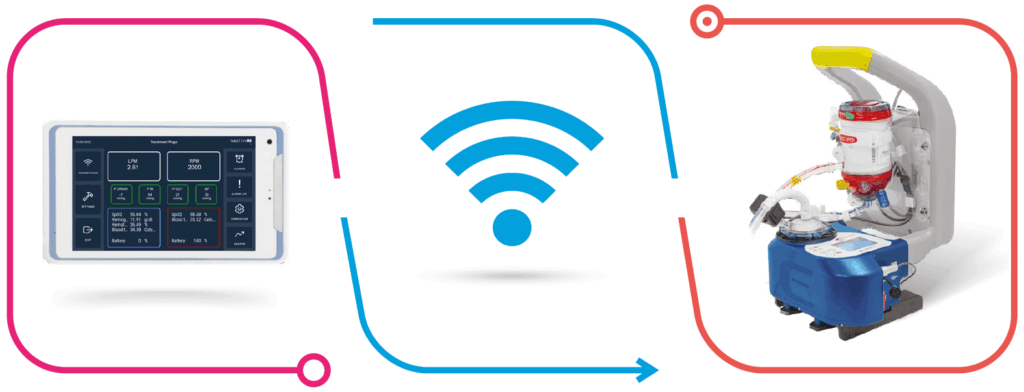

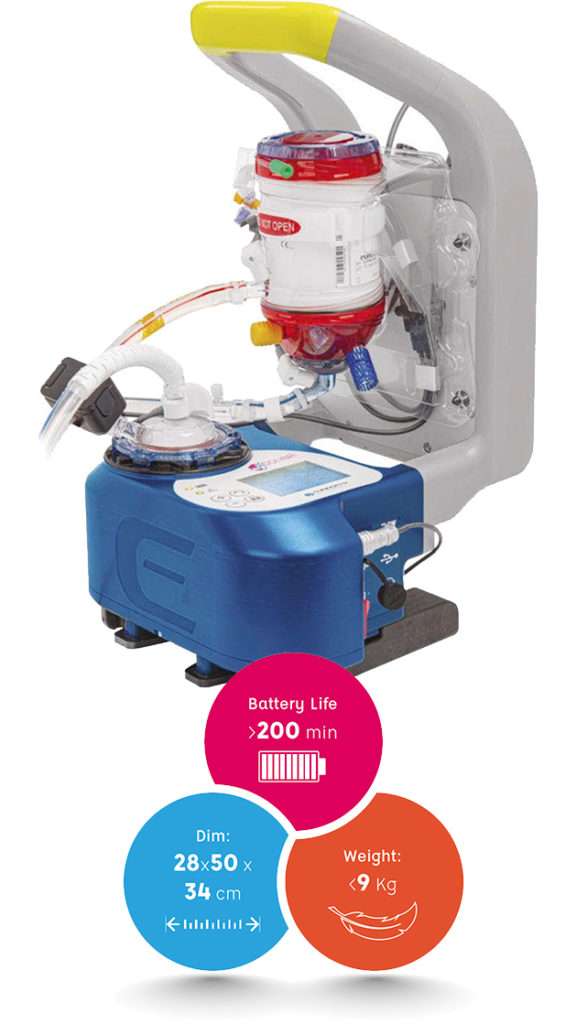

Colibrì is the first ECLS transportable device with integrated Wi-Fi module that allows the connection to a dedicated Medical Tablet for:
Mirroring of all parameters measured by the device
Trending graphs of all parameters
List of alarm and device status
Dedicated Probes for monitoring of arterial and venous parameters, directly speaking with the Medical Tablet with 3 hours of autonomy and the possibility to be connected to a recharge station during use. Able to measure:
Measurement of Arterial saturation (SaO2) and Arterial Temperature (Tart) arterial side
Measurement of Venous saturation (SvO2), Venous Temperature (Tven), Hemoglobin (Hb) and Hematocrit (HCT) venous side
With the same Colibrì Medical tablet it is possible to visualize and perform wireless vascular and cardiac echo thanks to a dedicated WiFi probes and a dedicated application.
Clarius wireless ultrasound probes are ideal for vascular assessments and interventions to reduce complications and increase patency.
Automated vascular settings and enhanced needle visualization streamline imaging, while sensitive color Doppler and Pulsed Wave Doppler support timely diagnosis and patient management.

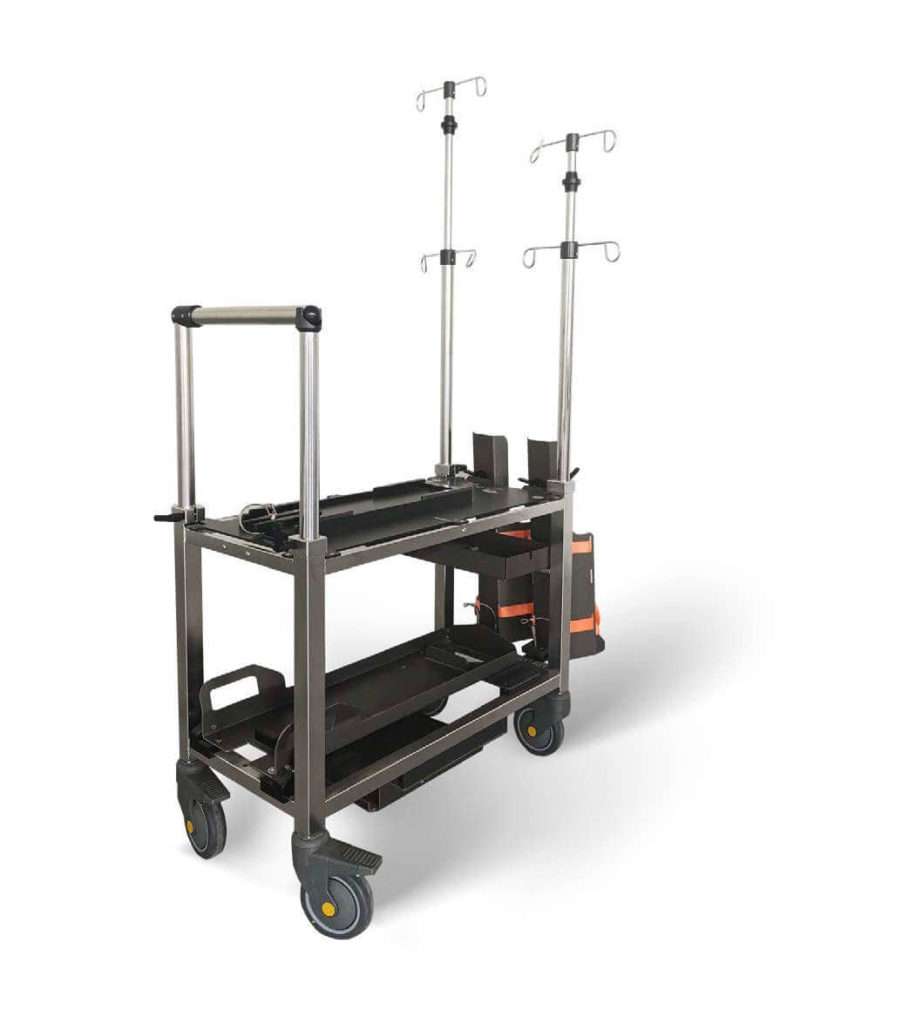

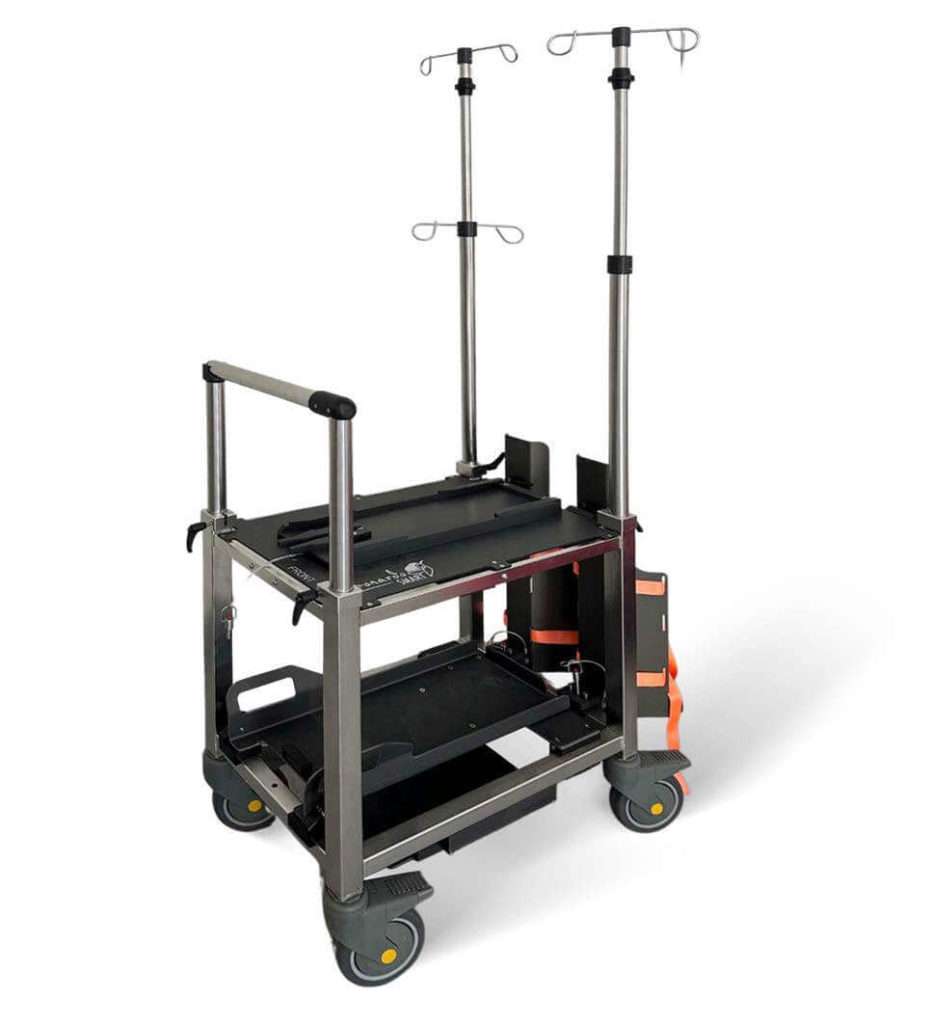

Leonardo Slim is designed for convenient transportability across hospital facility.
Is characterized by a minimized footprint and a unique and patented design that allow ECMOLife transport, including the O2 and Air Tanks, also in a very narrow environments.
The electrical isolation transformer is included.
Smart transport solutions for convenient device movement: a unique transport trolley that allows easy intra-hospital transport of Colibrì, including the O2 and Air Tanks. The electrical isolation transformer is included.

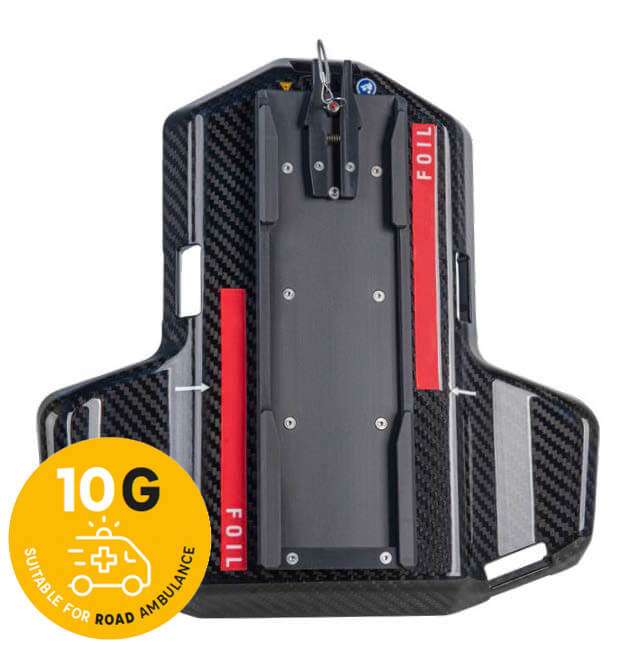

FOIL is the only device in the market that is certified and validated to carry Eurosets ECLS devices on any stretcher, in hospital and in Ambulance, between the patient’s legs.
A unique transport accessory that allows on Air Ambulance (helicopter) transport of Colibrì.

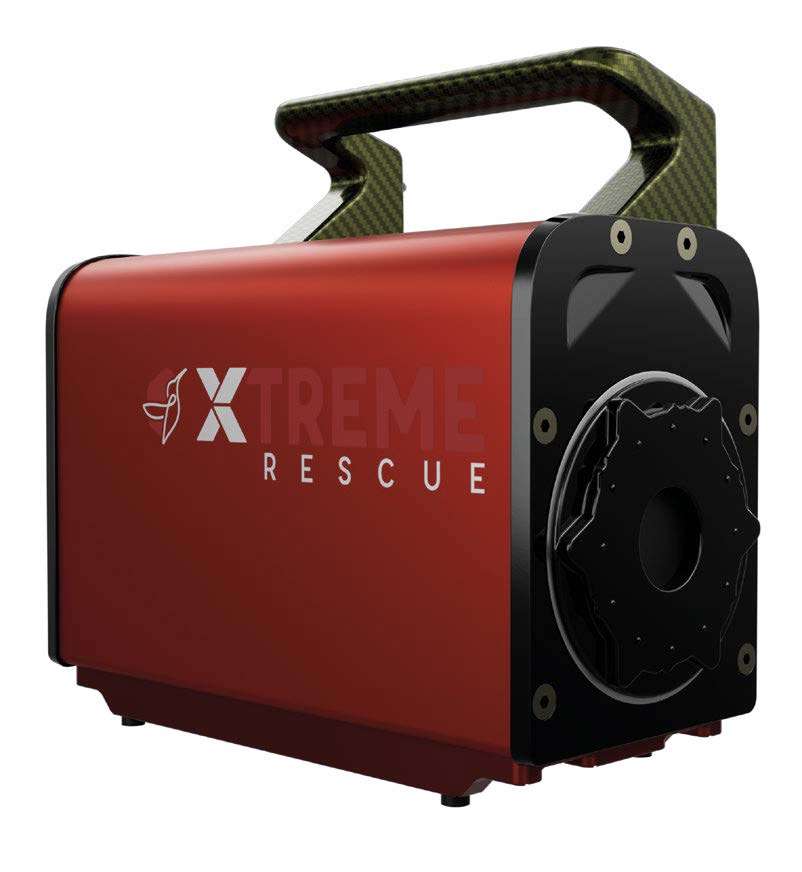

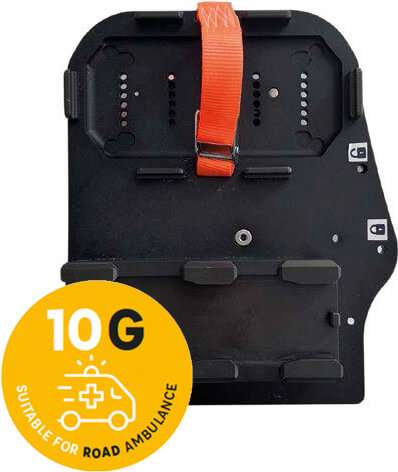

A dedicated plate Validated both for Leonardo Smart and Foil to transport Xtreme Rescue intra and extra hospital (Road Ambulance).

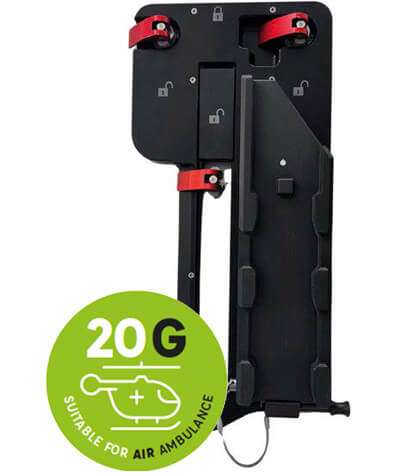

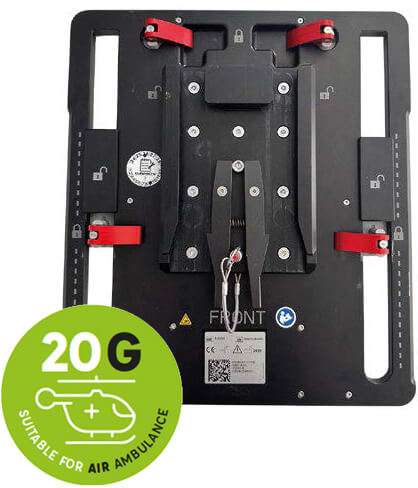

A dedicated avionic plate to transport Xtreme Rescue on Air Ambulance (helicopter).

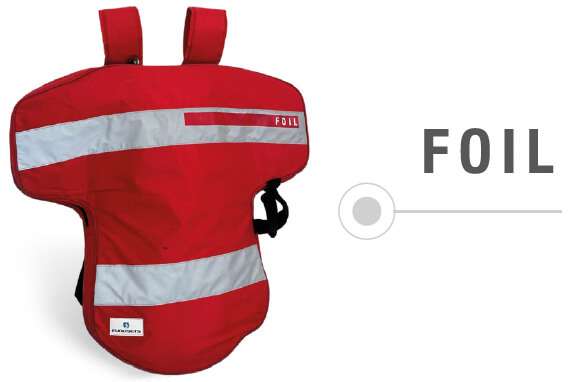

A dedicated backpack for easy transport of FOIL plate in any intra and extra-hospital situation.

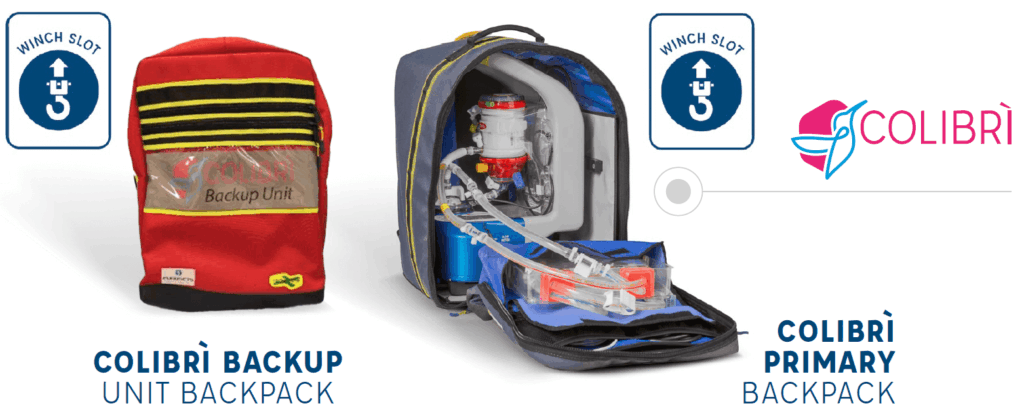

A unique, dedicated backpack that can host Colibrì easily inserted and fixed inside.
An external whinch slot allows proper fixation and movimentation of the backpack including table tray, circuit and Colibrì accessories.

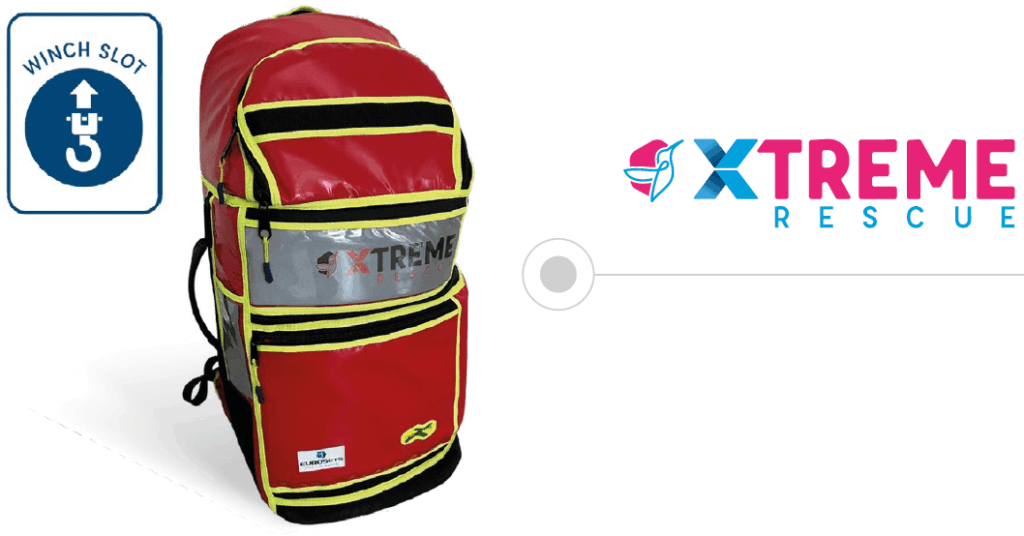

A unique and dedicated backpack that can host Xtreme Rescue and all its accessories for an easy and safe transport.

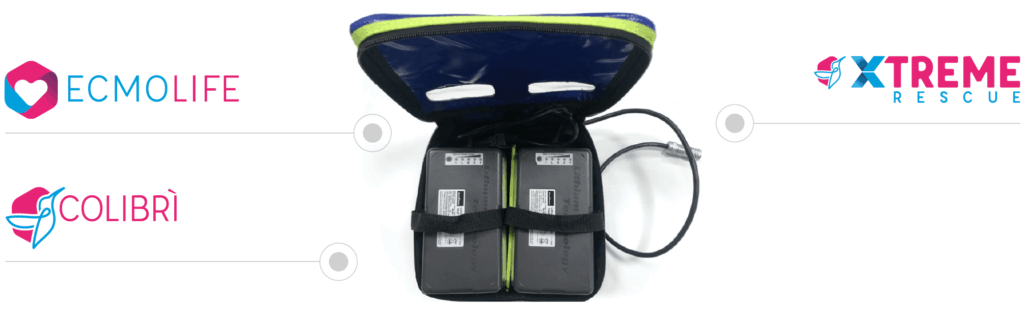

Available both for ECMOLife and Colibrì/Xtreme, the auxiliary external batteries ensure extra procedural time in case of emergency.
With an extra duration of 90 minutes each, they allow the out-of-hospital use of ECMOLife, Colibrì, and Xtreme to be extended up to 6 hours.
At Eurosets, we understand the critical role our devices play in ECLS care. Uninterrupted operation and optimal performance are paramount for both patient well-being and operational efficiency.
That’s why we offer a comprehensive suite of Technical Service solutions, designed to keep your Eurosets equipment running smoothly and reliably.
+ 12 months Standard warranty
Device to be rented on Montlhy basis Installation Included

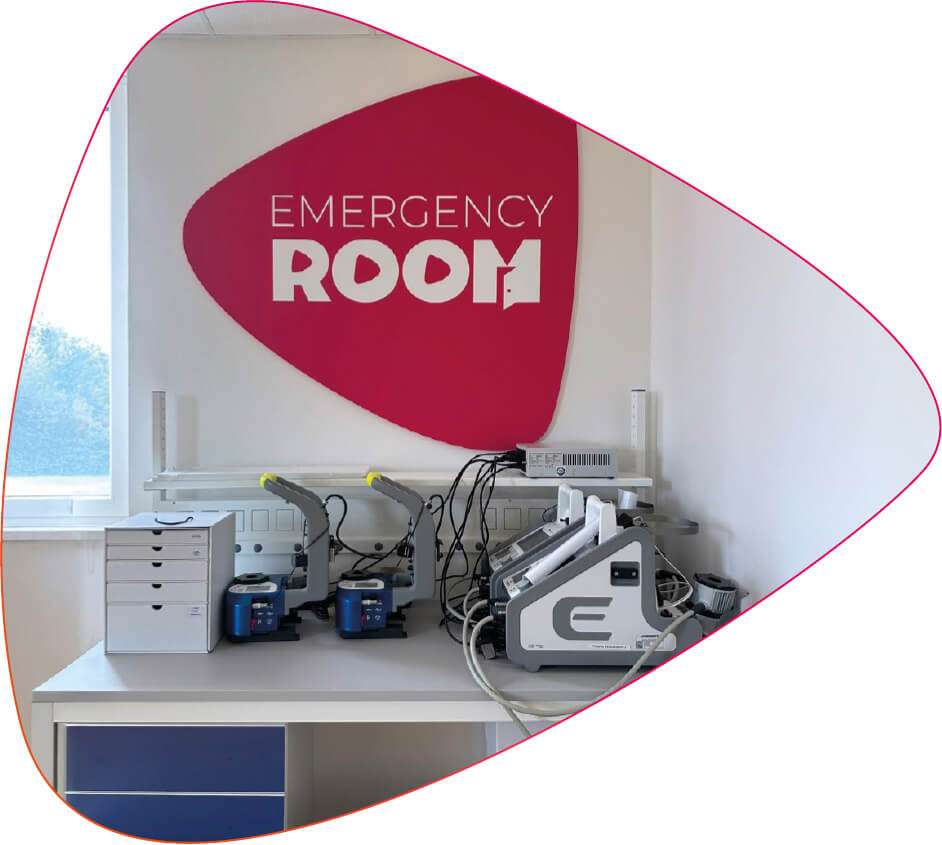

In critical situations, every second can make a life-altering difference. At Eurosets, we understand the urgency of ECLS medical care.
That’s why we have established a dedicated Emergency Room, a specialized facility within our operations designed to provide immediate access to a comprehensive inventory of our life-saving devices.
Ready when you needed: immediate availability of ECLS devices
Uncompromising readiness: specialized maintenance protocols
Your partner in ECLS care: peace of mind in times of need
Eurosets Academy is the educational platform dedicated to advancing medical knowledge, enhancing clinical skills, and fostering innovation in healthcare.
Through specialized clinical and technical training programs, hands-on workshops, and expert-led seminars, we support healthcare professionals, partners, and international teams in mastering the latest technologies and best practices.
At Eurosets Academy, we believe continuous learning is the key to improving patient outcomes and shaping the future of medical care.
